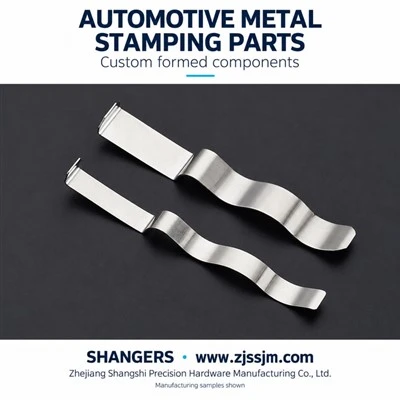

This automotive stamped component is a production sample that demonstrates how we turn a customer drawing into a repeatable manufacturing route. The displayed part is not offered as a fixed-size stock item; material, geometry, tolerances and finish are confirmed for each project.
From Drawing to Stamping Route
- Review critical dimensions, assembly surfaces and annual volume.
- Select progressive-die or single-stage tooling according to geometry and quantity.
- Confirm punching, bending, forming, deburring and secondary operations.
- Approve samples and establish inspection points before repeat production.
Sample Capability Matrix
| Project item | Options reviewed for each drawing |
|---|---|
| Part types | Brackets, housings, covers, reinforcement and formed components |
| Materials | Carbon steel, stainless steel, aluminum alloy and specified high-strength steel |
| Production route | Progressive-die or single-stage stamping with required secondary work |
| Surface treatment | Zinc plating, e-coating, phosphating, powder coating or drawing-specified finish |
| Tolerances | Confirmed after identifying functional and assembly-critical features |
Manufacturing Control Points
Our review focuses on bend position, material direction, formed depth, hole location and mating surfaces. Features that may distort during forming are identified before tooling. Incoming material, formed geometry, edge condition and finished dimensions are then checked against the approved drawing and inspection plan.
Representative Automotive Applications
- Mounting brackets and structural supports
- Vehicle housings, shields and protective covers
- Chassis or body reinforcement components
- Custom assemblies requiring welded, riveted or coated stamped parts
Drawing Package for Review
Send a 2D or 3D drawing with material grade, sheet thickness, critical tolerances, finish and estimated batch or annual quantity. If the design is still developing, include the assembly position and functional requirements so manufacturability can be reviewed before tooling.
