A non-standard shaft sample featuring a stepped cylindrical body, circumferential grooves and an enlarged end. SHANGERS welcomes enquiries for similar custom-machined parts made to your own drawing or reference sample.

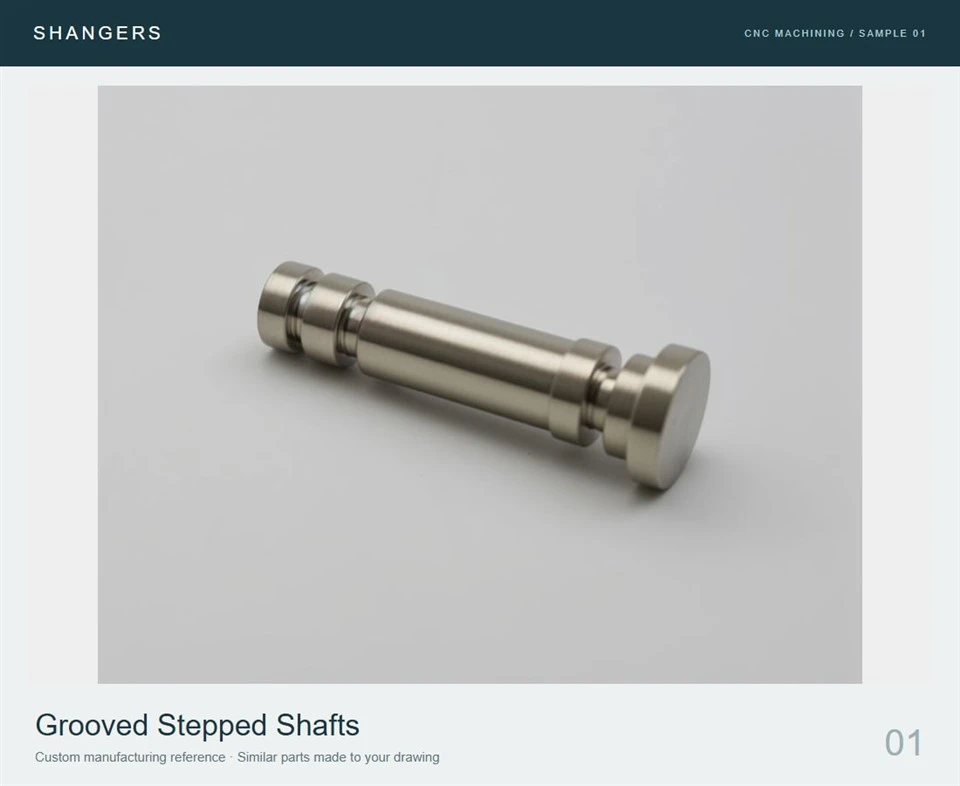

Grooved shaft sample / profile overview
A closer look at the sample
The sample has a long cylindrical body, narrow circumferential grooves and an enlarged circular end. Changes in diameter divide the profile into clearly defined sections. The side view shows the full outline, while the paired-sample photographs reveal the end faces and the larger and smaller sections. This is a reference for custom shafts with a comparable style of turned detail.

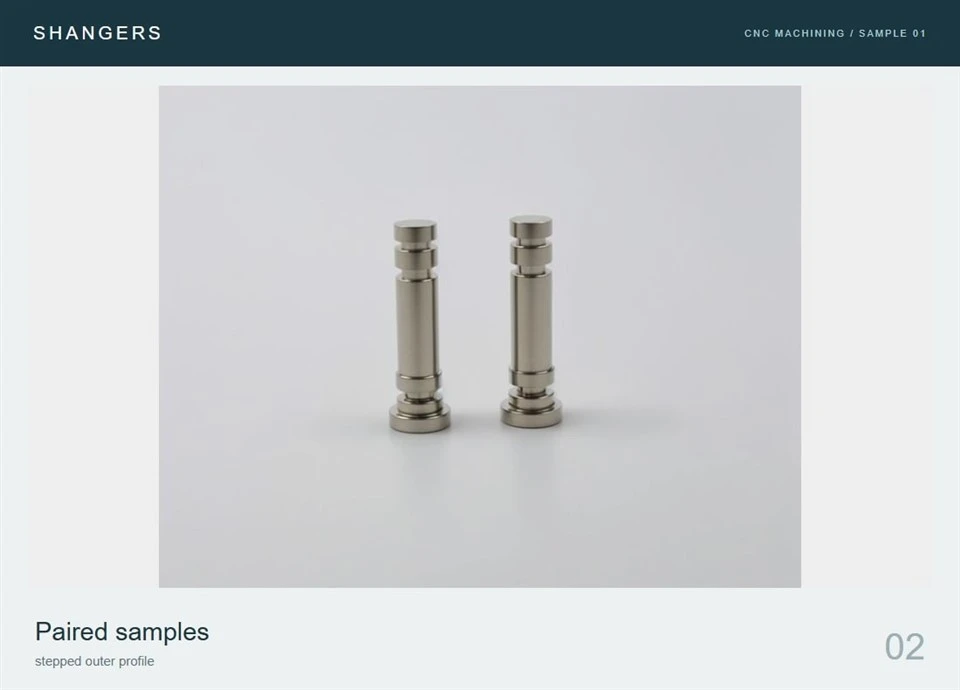

Paired samples / stepped outer profile
Similar shafts, made around your drawing
Your part does not need to copy this sample. A different body length, diameter sequence, groove arrangement or end profile can be discussed for a new drawing-based project. The pictured shaft is a manufacturing reference, not a fixed-size catalogue item. Each proposed variation is reviewed for manufacturability before its production scope is confirmed.

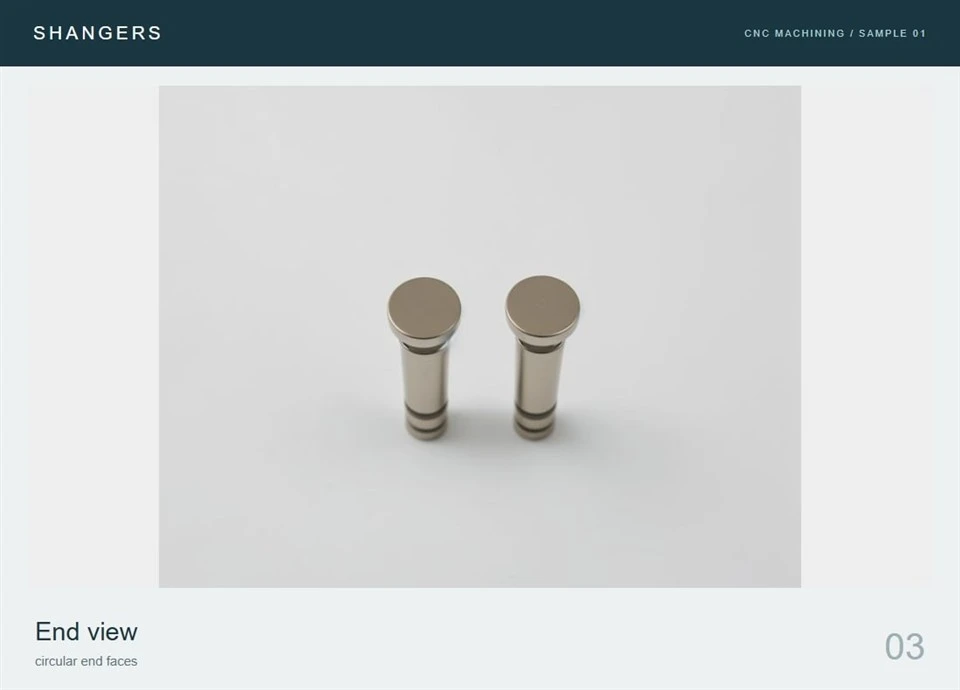

End view / circular end faces
Machining detail is the focus
The cylindrical sections, shoulders and narrow recesses are the main machining features in this example. A related part may need fewer steps, additional grooves or a different end form. SHANGERS reviews those features from the customer's part drawing and discusses the proposed machining scope. The aim is to make the component you need, using this sample as a visual starting point.
Material and finish to your specification
Material, surface treatment and inspection requirements are agreed for the actual order. The pictured sample is not a fixed stock model. Send your part drawing, a reference sample or clear product photographs with the required quantity. We can review a similar shaft for custom production and discuss the specification and quotation for your own design.
Need a similar custom shaft?
Send your part drawing or reference sample and the quantity you need. We will review your custom manufacturing enquiry.
